Classic
View Full Classic Kitchen Collection

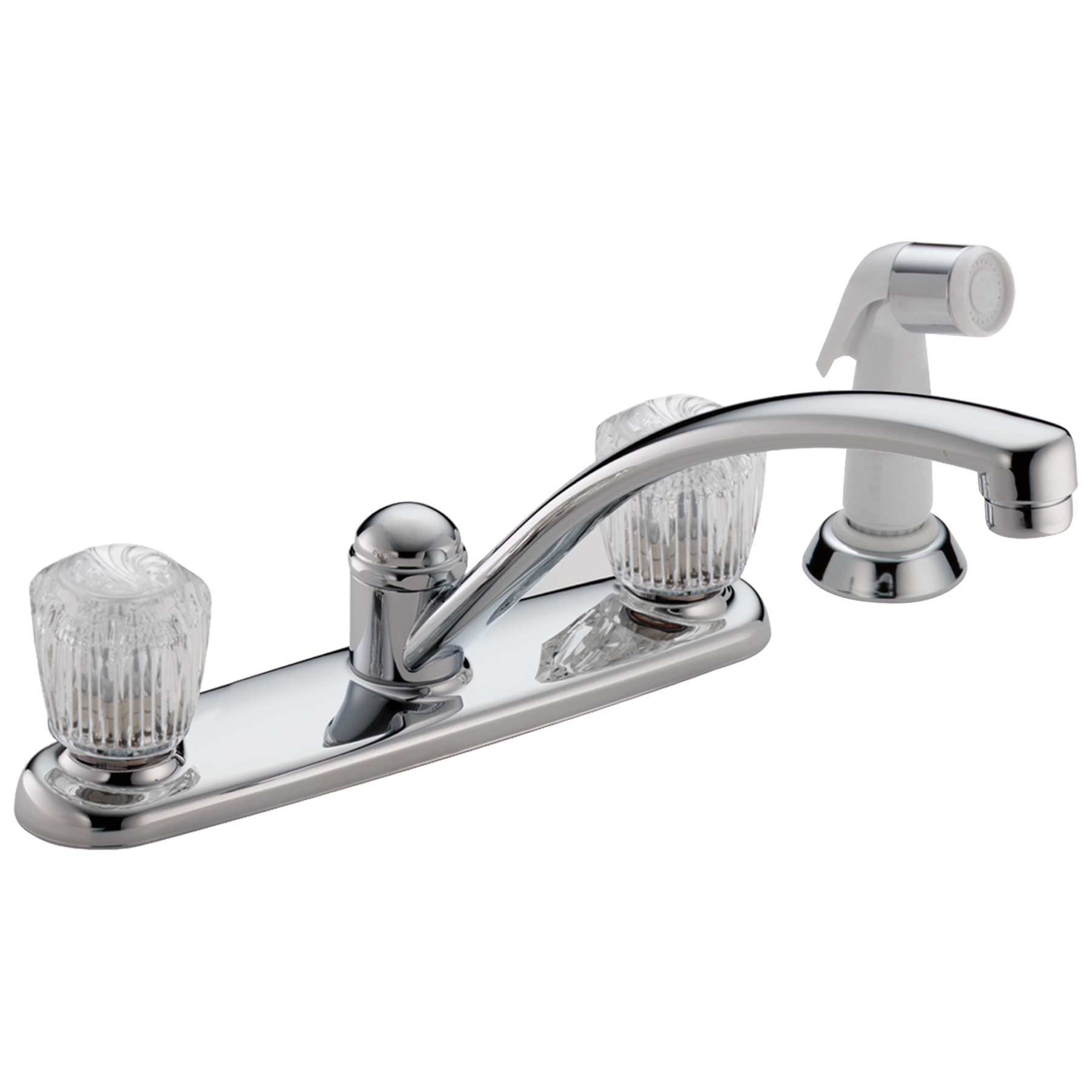

Two Handle Kitchen Faucet with Spray in Chrome

Model#: 2402LF
Add to Favorites
Find local Delta® installers.
Classic
View Full Classic Kitchen Collection
Two Handle Kitchen Faucet with Spray in Chrome
Model#: 2402LF
List Price: $19700
Add to Favorites
Find local Delta® installers.
PRODUCT FEATURES
You can install with confidence, knowing that Delta faucets are backed by our Lifetime Limited Warranty.
  • 4-hole 8" installation
  • Includes convenient side sprayer
  • Standard spout swivels 360degrees
Special Information
Warning Image
California Prop 65 WARNING
Technology and Special Features
No-Lead Compliant
With Side Sprayer
Water-Efficient
Special Information
Warning Image
California Prop 65 WARNING
Documents & Specs
Product Support, Repair Parts & Technical Specifications
View Technical Specifications
View Maintenance & Installation Sheet
View Parts & Accessories Diagram
Register Product
Installation Information
4-hole 8" installation
Connection Type :
1/2" IPS connection
Flow Rate :
1.8 gpm @ 60 psi, 6.8 L/min @ 414 kPa
Overall Height (in.) :
6-11/32
Valve Type:
Washerless stem cartridge

INSTALLATION SUPPORT

Need help with installation? Find local Delta® installers. Get Quotes. Read reviews.

GO
Enter Valid Zip.
REVIEWS
Rated 5 out of 5 by from Great Value! Second one we have owned and installed and so far could not be more pleased with the product and the improvements.
Date published: 2026-07-08
Rated 5 out of 5 by from Better Than Expected! This is the second one I have owed and like the improvements made over the last model.
Date published: 2026-07-01
Rated 5 out of 5 by from Great product Great product. Reasonably priced. Easy to install.
Date published: 2023-02-13
Rated 4 out of 5 by from Nice faucet! One thing I did not know is that this faucet has a 'male' connector so it did not work with our Pur water filter which had a 'female' adaptor. However, I've contacted Pur and they have shipped adaptors to try with it. The sprayer looks less substantial than the old one but works fine. The faucet turns on & off easily. Just got it installed by the plumber yesterday.
Date published: 2022-04-14
Rated 3 out of 5 by from works well, easy to install, very good price wish the valves could operate hot clockwise cold counterclockwise
Date published: 2018-07-24
Rated 5 out of 5 by from Great Buy Great price for quality & lifetime guarantee. My water filter is able to screw into this one. Steel Braided Hose on sprayer. Works very smoothly.
Date published: 2018-02-24
Rated 5 out of 5 by from The best money can buy I'm a proud owner of these products and advise some of my associates to buy this type of unit if they're having upgrades done to their kitchen or bathrooms. I just had mine's replaced after over 23 years of service from the old one, I think it was about time because of the wear and tare?
Date published: 2016-05-14
Rated 1 out of 5 by from Only had for 2-wks. Never should have broken I won't rate this product. I've only had it for 2-wks. The original product was only 3-months old and never should have broken. I was also upset that this replacement is propriety and you can't find universal parts for this. I will submit a more complete review in 5 years. Part that broke was the sprayer. It's impossible to track down a replacement without going through Delta. Poor design. I don't like being held hostage by any company for a simple part.
Date published: 2014-07-02
  • y_2026, m_7, d_20, h_7
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.48
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_8
  • loc_en_US, sid_2402LF, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getReviews, 6ms
  • reviews, product
Q&A

How do you install a vegetable hose. It’s not working

Asked by: Shelia
Hello Shelia, Thank you for your question. The vegetable/side sprayer and hose of the the Delta Classic Kitchen 2402LF faucet is one full part and just sit in the hole of the support and the end of the hose quick connects. Please see page 2 of the below Maintenance/Installation document link. https://media.deltafaucet.com/MandI/X00082323_A.pdf Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28

Is this a chrome plated metal faucet? I do NOT want plastic

Asked by: Jim
Thank you for your question, Jim. The spout and base plate are Chrome plated metal and the valve body is brass. Best regards, Jon
Answered by: DeltaFaucet3
Date published: 2024-03-28

What is model of sprayer hose for faucet 2402LF

Asked by: Kelly
Hi, Kelly! Thank you for your question. The Delta 2402LF Faucet uses the RP39364 Sprayer Assembly. Here is a link to the part: https://www.deltafaucet.com/parts-product-detail?modelNumber=RP39364 Best Regards, Rosanna
Answered by: Delta Faucet
Date published: 2024-03-28

How do I remove the hot water stem for 2402LF ? I want to stop a leak.

Asked by: Robert
Thank you for your question, Robert! We recommend making sure both the hot and cold water supplies are fully turned off below the counter first. Next, remove the handle assembly, which may involve prying up a button cover for a knob handle or unscrewing a set screw on the side of a lever handle. You will then unscrew the bonnet nut and pull the old stem straight up.Make sure the valve body is clear of debris before inserting the new parts. https://media.deltafaucet.com/PartsDiagram/2100_2102_2400_2402_70700_Rev_A.pdf Best regards, Edward
Answered by: Delta Faucet
Date published: 2024-03-28

How do you remove the end of the spray nozzle?

Asked by: MarilynT51
Hello MarilynT51, Thank you for your question. The end/face of the vegetable/side sprayer assembly, that comes with the Delta Classic Kitchen 2402LF faucet, is not a removable part. Best regards, Tanya
Answered by: Delta Faucet
Date published: 2024-03-28

Is there a high arc arm that will fit the Delta Classic #2402LF kitchen faucet? My apartment manager put in this faucet and it is too low to properly rinse dishes.

Asked by: Relpike
Hello vivasher, Thank you for contacting us. I am happy to help you! The Delta model 2402LF does not have an option for a spout with a high arc. Please contact us with any questions or for further assistance. Best Regards, Emma
Answered by: Delta7
Date published: 2024-03-28

My Delta model 2402LF leaks intermittently from the aerator; when it leaks, just a few drops fall in the sink, then it stops. I changed the cold-water stem assembly but not the hot stem assembly. What do you suggest the problem might be?

Asked by: Greg52
Hi Greg52, Thanks so much for contacting Delta Faucet Company! We recommend replacing the Seats & Springs Model#: RP4993. Please reach out with further questions! Best Regards, Kelley Digital Communications Specialist
Answered by: Customer Service
Date published: 2024-10-25

What oring or gasket keeps hot water from running?

Asked by: sturmssk
Hi sturmssk, Thank you for your question about the Delta Faucet model 2402LF. We recommend replacing RP4993 seat and spring under the handle stem if the hot or cold is running. Please reach out with any additional questions! Best Regards, Bryan Digital Communications Specialist
Answered by: Delta
Date published: 2025-01-10
  • y_2026, m_7, d_20, h_7CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.48
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_13
  • loc_en_US, sid_2402LF, prod, sort_[SortEntry(order=HAS_STAFF_ANSWERS, direction=DESCENDING)]
  • clientName_deltafaucet
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getContent, 26ms
  • questions, product
PART LIST

PART LIST

Image-Master-RP330

Delta®

Delta® Aerator - 2.2 GPM

List Price: $11.20 - $33.00
Free Ground Shipping All Orders $49+

RP330

Image-RP1748

Classic

Classic Slip Ring - 2H Kitchen

List Price: $5.20
Online Price: $4.16
Free Ground Shipping All Orders $49+

RP1748

Image-Master-RP34090

Classic

Classic Spout Cap - 2H Kitchen

List Price: $31.35
Online Price: $25.08
Free Ground Shipping All Orders $49+

RP34090

Image-RP63135

Delta®

Delta® Diverter Assembly - Kitchen

List Price: $42.05
Online Price: $33.64
Free Ground Shipping All Orders $49+

RP63135

Image-RP1740 Secondary Image-RP1740

Delta®

Delta® Stem Assembly - 2H

List Price: $23.15
Online Price: $18.52
Free Ground Shipping All Orders $49+

RP1740

4.36 11
Image-RP2055

Delta®

Delta® O-Rings - Kitchen Spout

List Price: $14.10
Online Price: $11.28
Free Ground Shipping All Orders $49+

RP2055

5.00 2
Image-RP4993

Delta®

Delta® Seats & Springs (2 ea)

List Price: $10.10
Online Price: $8.08
Free Ground Shipping All Orders $49+

RP4993

4.70 100
Image-Master-RP6060

Delta®

Delta® Bonnet Nuts (2) - Two Handle Kitchen or Bathroom

List Price: $23.70 - $38.20
Free Ground Shipping All Orders $49+

RP6060

Image-RP24097

Delta®

Delta® 1/4 Turn Stop

List Price: $12.35
Online Price: $9.88
Free Ground Shipping All Orders $49+

RP24097

5.00 3
Image-RP24096 Secondary Image-RP24096

Delta®

Delta® Stem Unit Assembly

List Price: $41.85
Online Price: $33.48
Free Ground Shipping All Orders $49+

RP24096

4.61 44
Image-RP6064

Delta®

Delta® Locknuts (2)

List Price: $12.50
Online Price: $10.00
Free Ground Shipping All Orders $49+

RP6064

Image-Master-RP39345

Delta®

Delta® Side Spray & Hose Assembly

List Price: $55.60 - $125.55
Free Ground Shipping All Orders $49+

RP39345

Image-RP6183

Delta®

Delta® Locknuts (2)

List Price: $12.35
Online Price: $9.88
Free Ground Shipping All Orders $49+

RP6183

Image-Master-RP34089

Classic

Classic Spout Assembly - Two Handle Kitchen

List Price: $121.70
Online Price: $97.36
Free Ground Shipping All Orders $49+

RP34089

Image-Master-RP39364

Delta®

Delta® Spray w/ Chrome Band & Spray Assembly - White

List Price: $130.30
Online Price: $104.24
Free Ground Shipping All Orders $49+

RP39364
